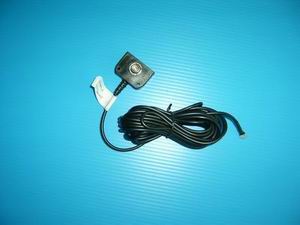

GW0005-02 Common Point Ground

• FEATURES:
• Complete ground kit
Includes one  common point ground and one  universal snap kit
• 10mm socket snap
Compatible with mats that have a 10mm stud snap
• Two banana jacks
Provides two grounding points for wrist straps or carts
• Ring terminal at end of ground cord
Allows easy attachment to electrical ground
• Low profile
Reduces snagging of clothes and work instruments
• Extra ring terminal included
Allows for customizing cord length
• Per ANSI/ESD 56.1
No resistor is recommended, but with resistor is acceptable
Ordering Information:
Packing:1pcs/polybag,50pcs/big bag,10big bag/ctn

P/N

Size

G.W.

N.W.

Carton size



GW0005-02



Length:

4.6M,

Thickness:

3mm





19.8KGS





18.8KGS





50x33x24cm
