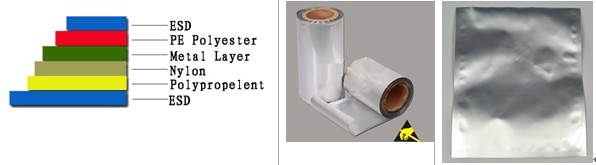

Moisture barrier bag |
Moisture barrier bag
|
Specification
|
|
Property
|
Test Item
|
Unit
|
Test Result
|
Test Method
|
|
Clean Property
|
Micro Particle Content
|
pc/0.1CF
|
inner side<10
|
Shikoku method
|
|
Purification Grade
|
¡¡
|
class 100-10,000
|
¡¡
|
|
Environmental Property
|
Heavy Metal content
|
|
|
|
|
Pb
|
ppm
|
2
|
ROHS
|
|
Cd
|
ppm
|
2
|
ROHS
|
|
Hg
|
ppm
|
2
|
ROHS
|
|
Cr6
|
ppm
|
2
|
ROHS
|
|
PBDE
|
ppm
|
5
|
ROHS
|
|
PBB
|
ppm
|
5
|
ROHS
|
|
Antistatic Properties
|
Surface Resistance
|
Ω
|
<109
|
ASTM D-257
|
|
Inner Resistance
|
Ω
|
<109
|
ASTM D-257
|
|
Metall Layer Resistivity
|
Ω
|
<0.1
|
ASTM D-257
|
|
Physical Properties
|
the air perm of the water vapour
|
0.0006gm;100sq.in./24hrs
|
ASTM F1249
|
|
the air perm of Oxygen
|
0.0006cc/100sqlin./24hrs
|
ASTM F1249
|
|
Screening Property
|
db
|
>40
|
MIL-B-81705-C
|
|
Screening Voltage
|
V
|
£¼10
|
E1A541
|
|
Decay Time
|
s
|
<0.03
|
E1A541
|
|
Heat sealing temperature
|
¡æ
|
155±10
|
|
|
Pressure
|
PSI
|
70
|
|
|
Time
|
s
|
0.5
|
|
|
|
|
|
|
|
|
|
|
