Click to view the original large map

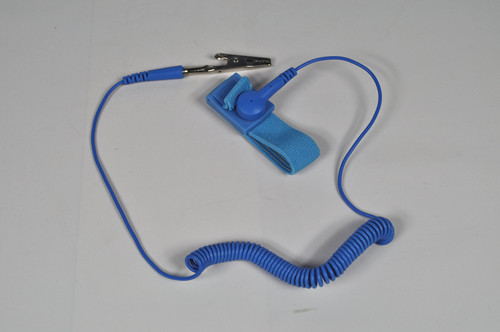

WD46 Wrist strap with PU coilcord

Product Name:Light blue adjustable wrist strap with PU coilcord

Product Code: WD46

Description: Anti-static wrist strap absorbs the static charge away from personal to protect electronic devices.lt is lined with an excellent conductive cloth woven.lt wraps

around your wrist comfortably and is easy to fix or un-fix.It safeguards personal from possible electric shock by one mega-ohm resistor built into the snap fastener.

FEATURES:

Solid Stainless Steel Machined Snap Stud
Durable material will not wear and provides constant1-5 pound release to prevent accidental disconnects and increased safety.

Carbon fiber Impregnated Polypropylene Knitted Band Material
Provides better connection with operator in normal environments.

Non-Shedding, Non-Sloughing Replaceable Lightweight Fabric Band

Band will not introduce contaminates into the work area and may be replaced without replacing entire wrist band

Medical Grade Stainless Steel Locking Clasp
Eliminates allergic skin reaction for most operators and prevents band from slipping so that operator does not have to re-size each time.

COIL CORD

Highly Visible Colors
Bright colors allow supervisor to see that worker is wearing wrist strap.

Superior Strain Relief Tests In Excess Of 16,000 Cycles**£¬which could meet the national standard for working environment wrist strap.
Eliminates intermittent failures that occur with less durable cords extending the lifespan of the wrist strap.

Arced Spring Supported Banana Plug
Prevents unnecessary wear to banana spring that will lead to accidental disconnects from banana jacks.

Low Profile Snap Design
Keeps cord from being disconnected or getting in the way of operator’s work area.

10 Inches Of rolled Nonextended Coil Cord
Allows operator to move freely within work area.

One Megohm Series Resistor
To protect operator from accidental contact with equipment line voltage.

Applications: PCB,SMT,mobile phone industry,other electronics products assembly line

Ordering information:
1.ACCESSORIES
Elastic band ( white Conductive Fiber )
1 mega Ohm resistor inside fastener
PU Coil cord (10’) D=2.2mm
Banana plug
Alligator clip
2.Packing: 100pcs/ctn

P/N
Size
G.W.
N.W.
Carton size
WD46
10’
4KGS
3.5KGS
24x20.5x40cm
