Description:

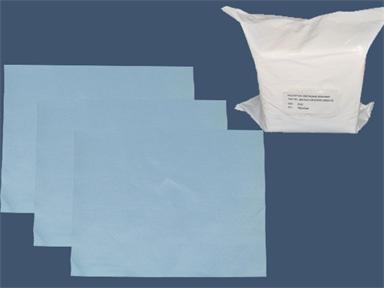

Microfiber wiper is constructed from 75% continuous-filament microdenier polyester and 25% nylon. These strong filaments have a high yarn-to-dust contact surface area, ensuring excellent wiping efficiency. Moreover, its wedge-shaped cross-section acts as squeegies for superior contact with surface to be cleaned, generating excellent absorbency and particulate entrapment. All four edges are laser cut / ultrasonic cut and sealed to prevent particle and fiber release. Cleaning and packing in cleanroom and double packed.
Features
—Laser/ultrasonic sealed edge ensures ultra low lint and particle level.
—Good absorbencv and wiping efficiency.
—High chemical resistance.
—Soft. cleaning scratch sensitive surfaces
Applications:
—Suitable for class 100-1000 classrooms
—Cleaning of lens and sensitive surfaces in optical and LCD display industries
Technical Data:
Performance characteristics
Basic Weight 180gsm
(IEST-RP-CC 004.3)
Thickness 0.45mm
Absorbency Rate & Capacity
(IEST-RP-CC 004.3)
Sorptive capacity 350ml/m2
Rate < 2.0sec
CLEANLINESS CHARACTERISTICS
Nonvolatile Residue,NVR
((IEST-RP-CC 004.3))
IPA Extractant(100ml IPA at ambient temp for 24 hrs) 0.41mg/g
DIW Extractant(100 ml DI water at ambient temp for 24 hrs) 0.30mg/g
NO Silicon Oil,Amide and DOP detected
FTIR
Ion Content
(IEST-RP-CC 004.3)
Chloride(CI) 0.00040 mg/g
Nitrates(NO3) 0.00001 mg/g
Nitrite(NO2) 0.00001 mg/g
Sulphate(SO4) 0.000093 mg/g
Sodium(NA) 0.00036 mg/g
Potassium(K) 0.00001 mg/g
Mognesium(Mg) 0.00002 mg/g
Calcium(Ca) 0.00008 mg/g
Releasable Particles
APC(dry test:Helmke Drum)>=0.5um 100 counts/pc./cfm.9”x9”
(IEST-RP-CC 003.2) 60x106 counts/m2/cfm
Order information:
|
P/N
|
DESCRIPTION
|
PCS/
BAG
|
BAG/
CASE
|
N.W.
|
G.W.
|
CARTON SIZE
|
|
WIP-180-MF-LCE-9
|
Cleanroom micro-fiber wiper 180 gsm, laser sealed Size:9”x9”
|
100
|
20
|
9.7
KGS
|
8.7
KGS
|
47x23.5x42cm
|
|
WIP-180-MF-LCE-6
|
Cleanroom micro-fiber wiper 180 gsm, laser sealed Size:6”x6”
|
100
|
30
|
9.1
KGS
|
8.1
KGS
|
47x23.5x38cm
|
|
WIP-180-MF-LCE-4
|
Cleanroom micro-fiber wiper 180 gsm, laser sealed Size:4”x4”
|
400
|
20
|
9.7
KGS
|
8.7
KGS
|
47x23.5x38cm
|
|
WIP-180-MF-UCE-9
|
Cleanroom micro-fiber wiper 180 gsm, ultrasonic sealed Size:9”x9”
|
100
|
20
|
9.7
KGS
|
8.7
KGS
|
47x23.5x42cm
|
|
WIP-180-MF-UCE-6
|
Cleanroom micro-fiber wiper 180 gsm, ultrasonic sealed Size:6”x6”
|
100
|
30
|
9.1
KGS
|
8.1
KGS
|
47x23.5x38cm
|
|
WIP-180-MF-UCE-4
|
Cleanroom micro-fiber wiper 180 gsm, ultrasonic sealed Size:4”x4”
|
400
|
20
|
9.7
KGS
|
8.7
KGS
|
47x23.5x38cm
|
