Description:

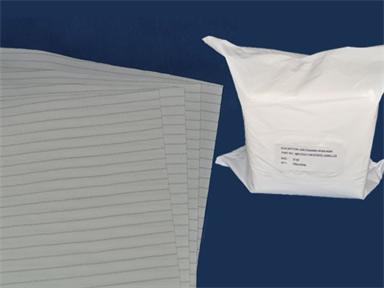

The 140g laser sealed/ultrasonic sealed edged ESD polyester stripe wiper is a double knit 100% continuous-filament polyester, interwoven conductive fiber. All four edges are laser cut/ultrasonic cut and sealed to prevent particle and fiber release. Cleaning and packing in cleanroom and double packed.
Features
—Laser sealed/ultrasonic sealed edge ensures ultra low lint and particle level.
—Good absorbencv and wiping efficiency.
—Resists abrasion under rigorous use.
—Choice of 9”x9”,6”x6”,4”x4” and other sizes upon customers’ request.
Applications:
—Suitable for class 10-100 classrooms
—PCB、SMT、semiconductor fabrication,electronic assembly production and office
—Cleaning of surfaces to control submicron particles,fiber,and chemical residue
Technical Data:
Performance characteristics
Basic Weight 140gsm
Thickness 0.48mm
Absorbency Rate & Capacity
(IEST-RP-CC 004.3)
Sorptive capacity ≥300ml/m²
Rate(Drop Disappearance mtd.) ≤1sec
Nonvolatile Residue,NVR
(IEST-RP-CC 004.3. short term extraction)
IPA Extractant(100ml IPA at ambient temp for 24 hrs) 0.21mg/g
DIW Extractant(100 ml DI water at ambient temp for 24 hrs) 0.1035mg/g
NO Silicon Oil,Amide and DOP detected
FTIR
Ion Content
(IEST-RP-CC 004.3. short term extraction)
Chloride(CI) 0.000150 mg/g
Nitrates(NO3) 0.000030 mg/g
Nitrite(NO2) 0.000030 mg/g
Sulphate(SO4) 0.000100 mg/g
Sodium(NA) 0.000075 mg/g
Potassium(K) 0.000098 mg/g
Mognesium(Mg) 0.000083 mg/g
Calcium(Ca) 0.000025 mg/g
Releasable Particles
LPC(>=0.5um) 5.10x106 particles/m2
(IEST-RP-CC 004.3-orbital shake mtd)
APC(Heimke Drum Test @10rpm);>=0.5um 50counts/pc./cfm-9”x9”
(IES-RP-CC003.2) 9.71x102 counts/m2/cfm
Ordering information:
|
P/N
|
DESCRIPTION
|
PCS/BAG
|
BAG/CASE
|
Carton Size
|
|
WIP-POLY-140-STRIPE-1009D-LCE
|
Cleanroom 100% ESD polyester stripe wiper 140 gsm, laser cut Size:9”x9
|
150
|
10
|
47x23.5x45cm
|
|
WIP-POLY-140-STRIPE-1006D-LCE
|
Cleanroom 100% ESD polyester stripe wiper 140 gsm, laser cut Size:6”x6”
|
150
|
20
|
31x31x45cm
|
|
WIP-POLY-140-STRIPE-1004D-LCE
|
Cleanroom 100% ESD polyester stripe wiper 140 gsm, laser cut Size:4”x4”
|
600
|
10
|
47x23.5x45cm
|
|
WIP-POLY-140-STRIPE-1009D-UCE
|
Cleanroom 100% ESD polyester stripe wiper 140 gsm, ultrasonic cut Size:9”x9
|
150
|
10
|
47x23.5x45cm
|
|
WIP-POLY-140-STRIPE-1006D-UCE
|
Cleanroom 100% ESD polyester stripe wiper 140 gsm, ultrasonic cut Size:6”x6”
|
150
|
20
|
31x31x45cm
|
|
WIP-POLY-140-STRIPE-1004D-UCE
|
Cleanroom 100% ESD polyester stripe wiper 140 gsm, ultrasonic cut Size:4”x4”
|
600
|
10
|
47x23.5x45cm
|
