Description:

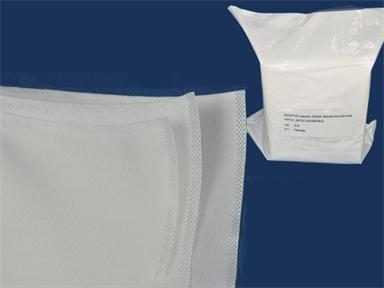

Polyester wiper 160g with wider ultrasonic sealed border at 5mm is a double knit 100% continuous-filament polyester. All four edges are ultrasonic cut and sealed to prevent particle and fiber release. Cleaning and packing in cleanroom and double packed.
Features
—Ultrasonic sealed edge with 5mm wider
—Wider sealed edge ensures ultra lower lint and particle level.
—Good absorbencv and wiping efficiency.
—Resists abrasion under rigorous use.
—Choice of 9”x9”,6”x6”,4”x4” and other sizes upon customers’ request.
Applications:
—Suitable for class 10-100 classrooms
—PCB、SMT、semiconductor fabrication,electronic assembly production and office
—Cleaning of surfaces to control submicron particles,fiber,and chemical residue
Technical Data:
Performance characteristics
Basic Weight 160gsm
Thickness 0.52mm
Absorbency Rate & Capacity
(IEST-RP-CC 004.3)
Sorptive capacity ≥325ml/m²
Rate(Drop Disappearance mtd.) ≤1sec
Nonvolatile Residue,NVR
(IEST-RP-CC 004.3. short term extraction)
IPA Extractant(100ml IPA at ambient temp for 24 hrs) 0.27mg/g
DIW Extractant(100 ml DI water at ambient temp for 24 hrs) 0.1535mg/g
NO Silicon Oil,Amide and DOP detected
FTIR
Ion Content
(IEST-RP-CC 004.3. short term extraction)
Chloride(CI) 0.000550 mg/g
Nitrates(NO3) 0.000080 mg/g
Nitrite(NO2) 0.000080 mg/g
Sulphate(SO4) 0.000500 mg/g
Sodium(NA) 0.000105 mg/g
Potassium(K) 0.000118 mg/g
Mognesium(Mg) 0.000113 mg/g
Calcium(Ca) 0.000075 mg/g
Releasable Particles
LPC(>=0.5um) 5.60x106 particles/m2
(IEST-RP-CC 004.3-orbital shake mtd)
Ordering information:
|
P/N
|
DESCRIPTION
|
PCS/BAG
|
BAG/CASE
|
Carton Size
|
|
WIP-POLY-160-1009D-WUCE
|
160g polyester wiper with wider border, ultrasonic cut Size:9”x9
|
150
|
10
|
47x24.5x47cm
|
|
WIP-POLY-160-1006D-WUCE
|
160g polyester wiper with wider border, ultrasonic cut Size:6”x6”
|
150
|
20
|
31x31x45cm
|
|
WIP-POLY-160-1004D-WUCE
|
160g polyester wiper with wider border, ultrasonic cut Size:4”x4”
|
600
|
10
|
47x24.5x47cm
|
