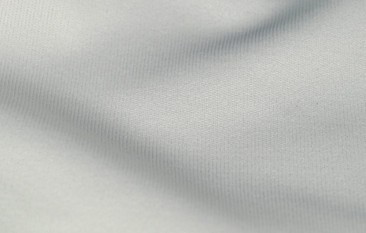

The 140g laser sealed/ultrasonic sealed edged polyester wiper is a double knit 100% continuous-filament polyester.All four edges are laser cut/ultrasonic cut and sealed to prevent particle and fiber release. Cleaning and packing in cleanroom and double packed.



—Laser sealed/ultrasonic sealed edge ensures ultra low lint and particle level.

—Good absorbencv and wiping efficiency.

—Resists abrasion under rigorous use.

—Choice of 9”x9”,6”x6”,4”x4” and other sizes upon customers’ request.



—Suitable for class 10-100 classrooms

—PCB、SMT、semiconductor fabrication,electronic assembly production and office

—Cleaning of surfaces to control submicron particles,fiber,and chemical residue





(IEST-RP-CC 004.3)



Sorptive capacity                                               310ml/m²

Rate(Drop Disappearance mtd.)                   0.5sec



(IEST-RP-CC 004.3. short term extraction)



IPA Extractant(100ml IPA at ambient temp for 24 hrs)                      0.20mg/g

DIW Extractant(100 ml DI water at ambient temp for 24 hrs)          0.10mg/g

NO Silicon Oil,Amide and DOP detected

(IEST-RP-CC 004.3. short term extraction)



 Chloride(CI)                                                                        0.000050 mg/g

 Nitrates(NO3)                                                                     0.000010 mg/g

 Nitrite(NO2)                                                                        0.000010 mg/g

 Sulphate(SO4)                                                                   0.000060 mg/g

 Sodium(NA)                                                                        0.000035 mg/g

 Potassium(K)                                                                      0.000048 mg/g

 Mognesium(Mg)                                                                  0.000013 mg/g

 Calcium(Ca)                                                                       0.000005 mg/g





LPC(>=0.5um)                                                                        4.60x10⁶ particles/m²

(IEST-RP-CC 004.3-orbital shake mtd)



APC(Heimke Drum Test @10rpm);>=0.5um                            50counts/pc./cfm-9”x9”

(IES-RP-CC003.2)                                                                   9.71x10² counts/m²/cfm
