No.

 Unit

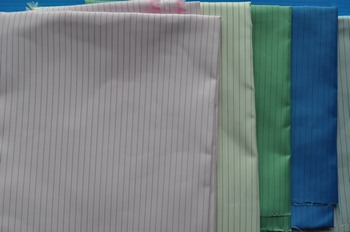

5mm antistatic stripe fabric

1.

Composition



99% polyester

１%conductive fibre

2.

Width



1.52M

3.

Surface density (weight)

G/m2

130

4.

Weave



2/1 twill

5.

Weave density

Warp

Threads/ 1cm

58

Weft

Threads/ 1cm

36

6.

Yarn

Warp



100D 48F

Weft



100D 48F

7.

Conductive

Fiber (E.C.F.)

Warp



22T/3-9R₁

Weft



22T/3-9R₁

8.

Shrinkage (for want of washings, dry-cleaners, sterilization)

%

<2

9.

Air Permeability



>10

10.

Surface resistivity

Ohms

<10⁸

Tribo-charge

V

<500

11.

Tearing

Strength

Warp

Kg

165

Weft

Kg

73

12.

Electric charge quantity

Uc/m²

0.18



5MM STRIPE

STFP001

WHITE

STFP002

PINK

STFP004

YELLOW

STFP008

SKY BLUE

STFP009

DARK GREEN

STFP010

ROSE PINK

STFP011

BROWN

STFP012

NAVY BLUE

STFP021

FLUORESCENT WHITE

STFP022

MIDDLE BLUE

STFP023

LIGHT BLUE

STFP028

DARK BLUE

STFP029

DARK GREY

STFP051

APPLE GREEN

STFP081

DARK GREEN B

STFP084

ORANGE

STFP085

OLIVE GREEN

STFP091

ROYAL BLUE
